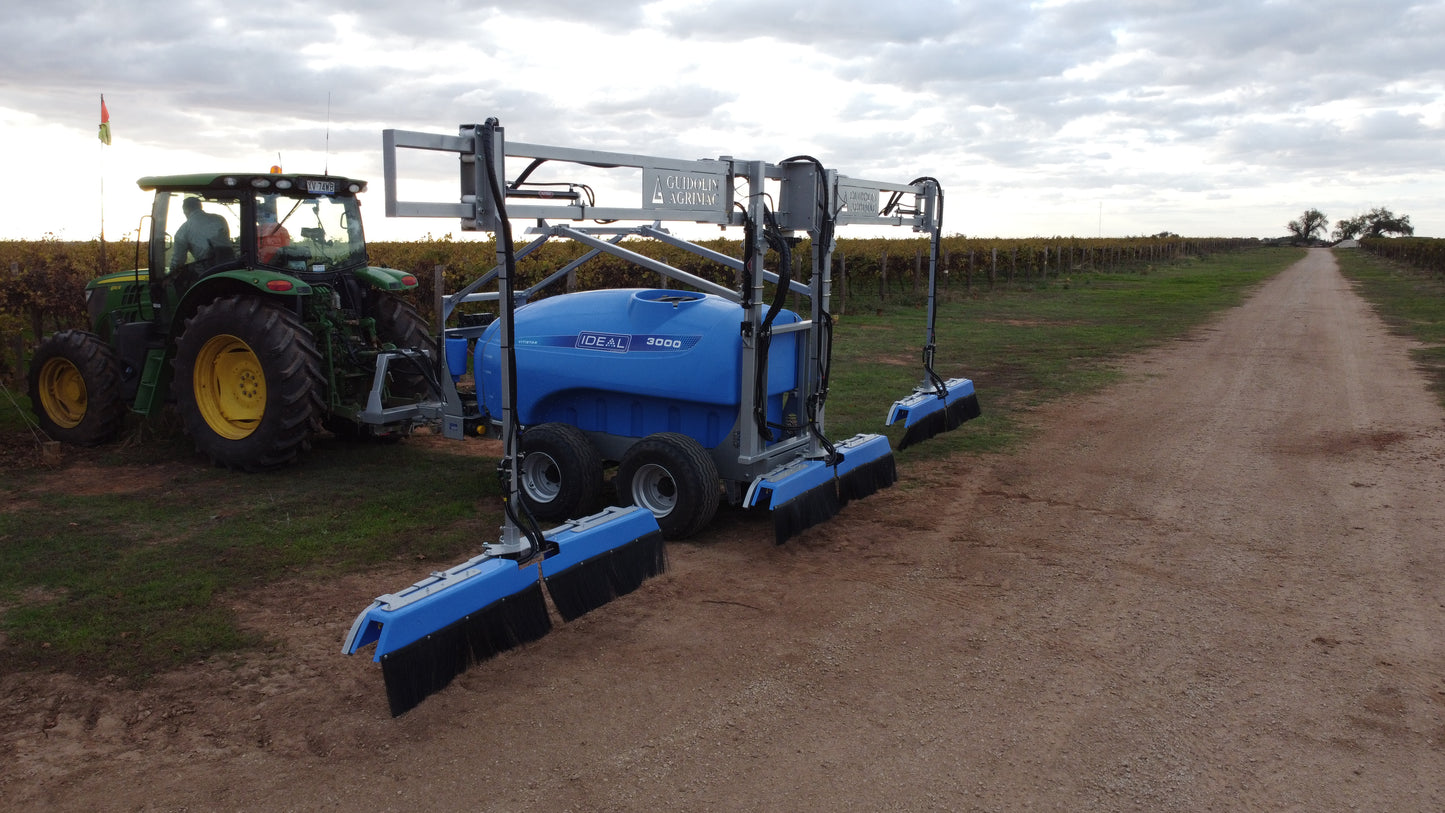

IDEAL Grassmaster 2/3 Row Vineyard Sprayer

SPECIFICATIONS:

MAIN APPLICATION
Wine and Table Grapes

TANK
Impact resistant polyethylene tanks with UV-stabilise finish. Calibrated sight gauge, flip-open filling lid with large basket strainer. Quick fill system
2000L - 5000L Main tank
Separate 7L fresh water tank

PUMP
Low pressure pump - Comet BP125 (max. 20-bar) - Large capacity (125 LPM) three diaphragm pump
Optional AR 185 litre or Hypro pump

DRIVE
Heavy Duty PTO drive shaft comes with safety covers and quick release pins
Optional hydraulic drive

CONTROLS
Standard Electric - motor values, 2 section in-cab control with electric pressure adjustment.
Optional bravo 180 automatic rate controller, 2 section (left/right) with optional
ISO Bus module available.

AGITATION
2000L - 5000L - twin brass agitators
Optional hypro hydraulic pump

FILTRATION
Full filtration system - tank filling basket, suction filter and pressure filter.

NOZZLES
Standard fitted with one set of TDAM air mix air induced nozzles
Note - you can specify your nozzle selection on your order if you know the calibration requirements of the sprayer for your customer.

CHASSIS & BOOM
Powder coated, full-length chassis with adjustable drawbar and 6-stud wheel hubs. Fixed axle standard; optional adjustable height and width axle. Jockey stands supplied on all models.
Two and three row Booms available with hydraulic fold, lift, side shift on request
Hot dipped Galvanised is available on request

WHEELS
2000L - steel rims,11.5/80 x 15.3”
3000L - 5000L - steel rims, 400/60 x 15.5” flotation tyres.
