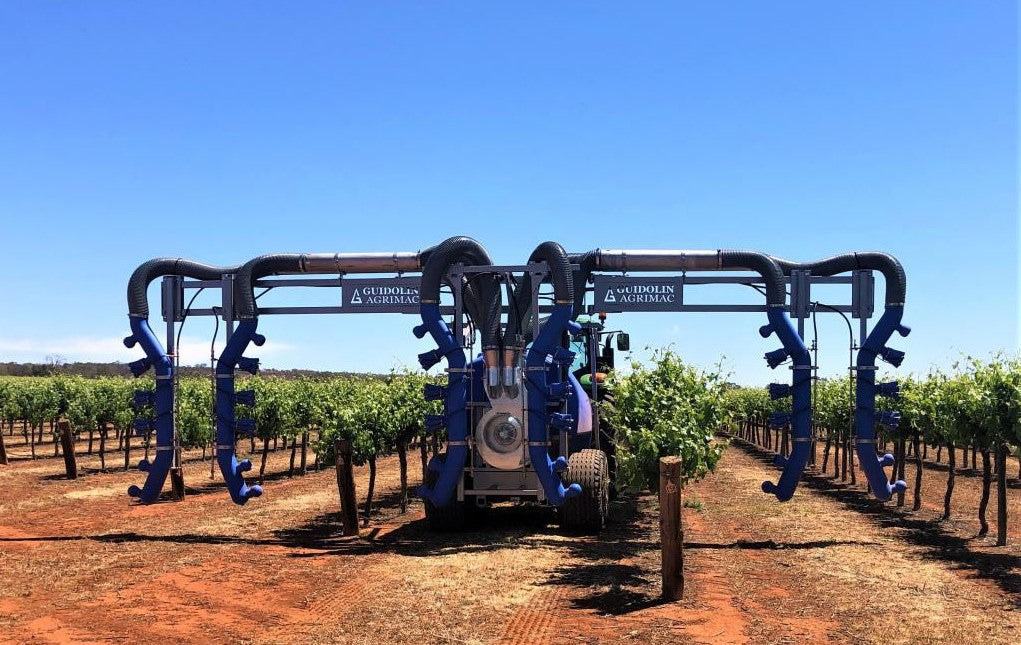

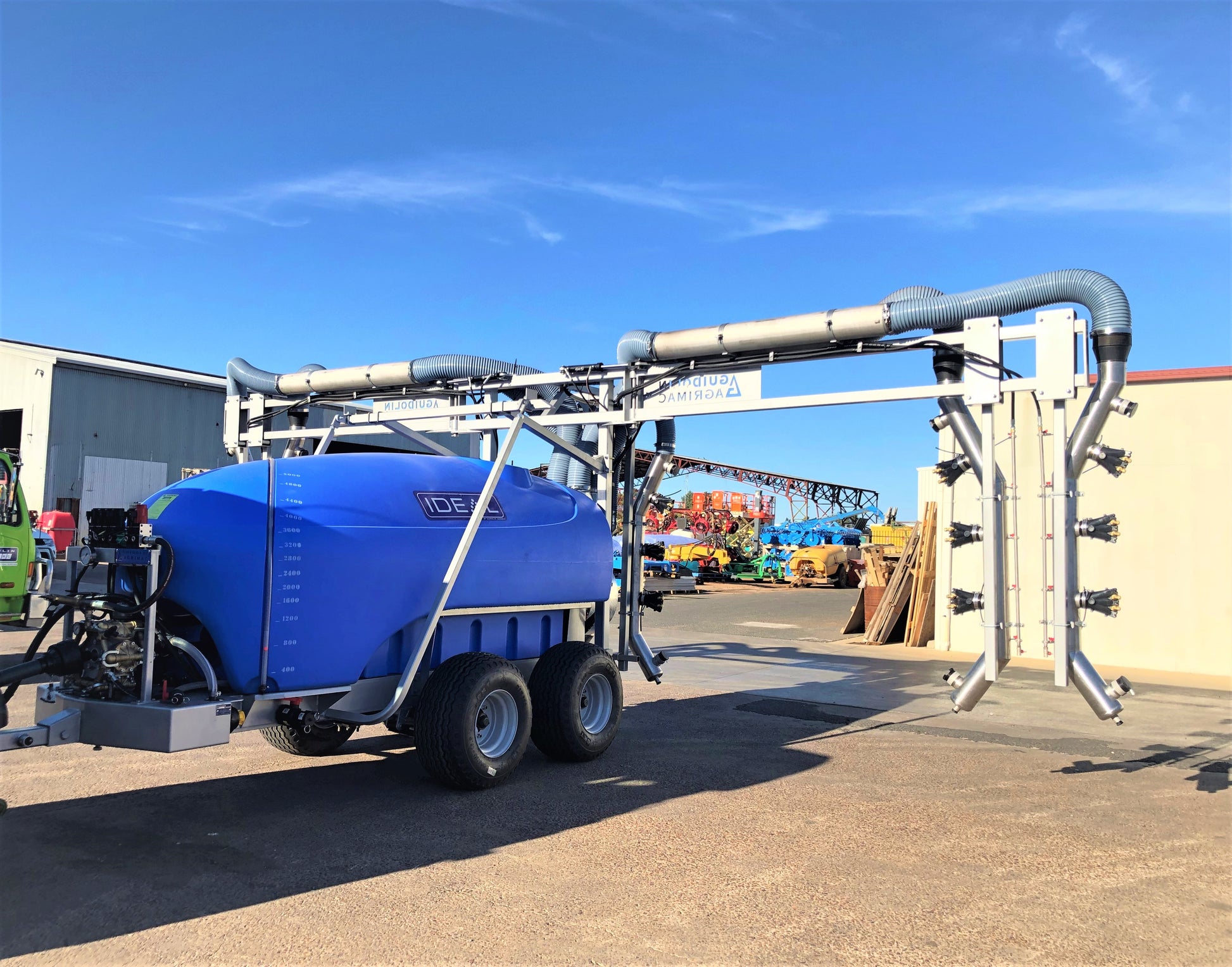

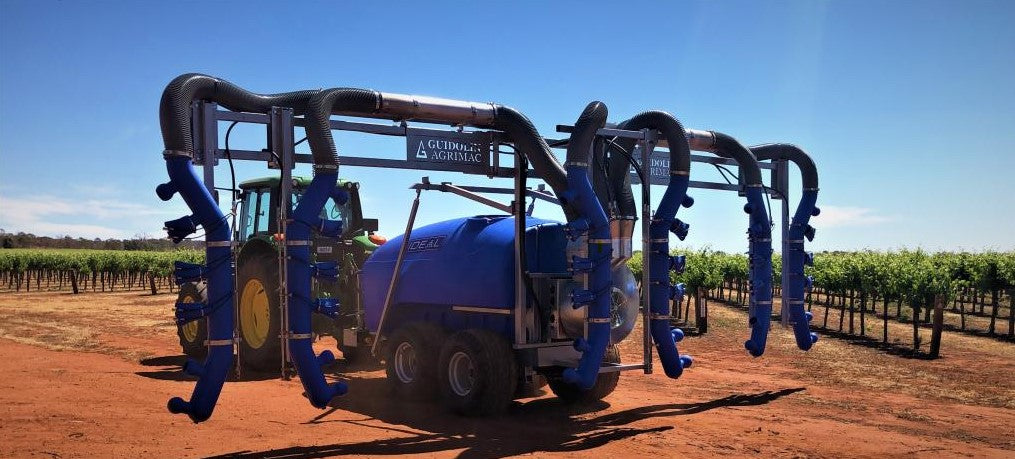

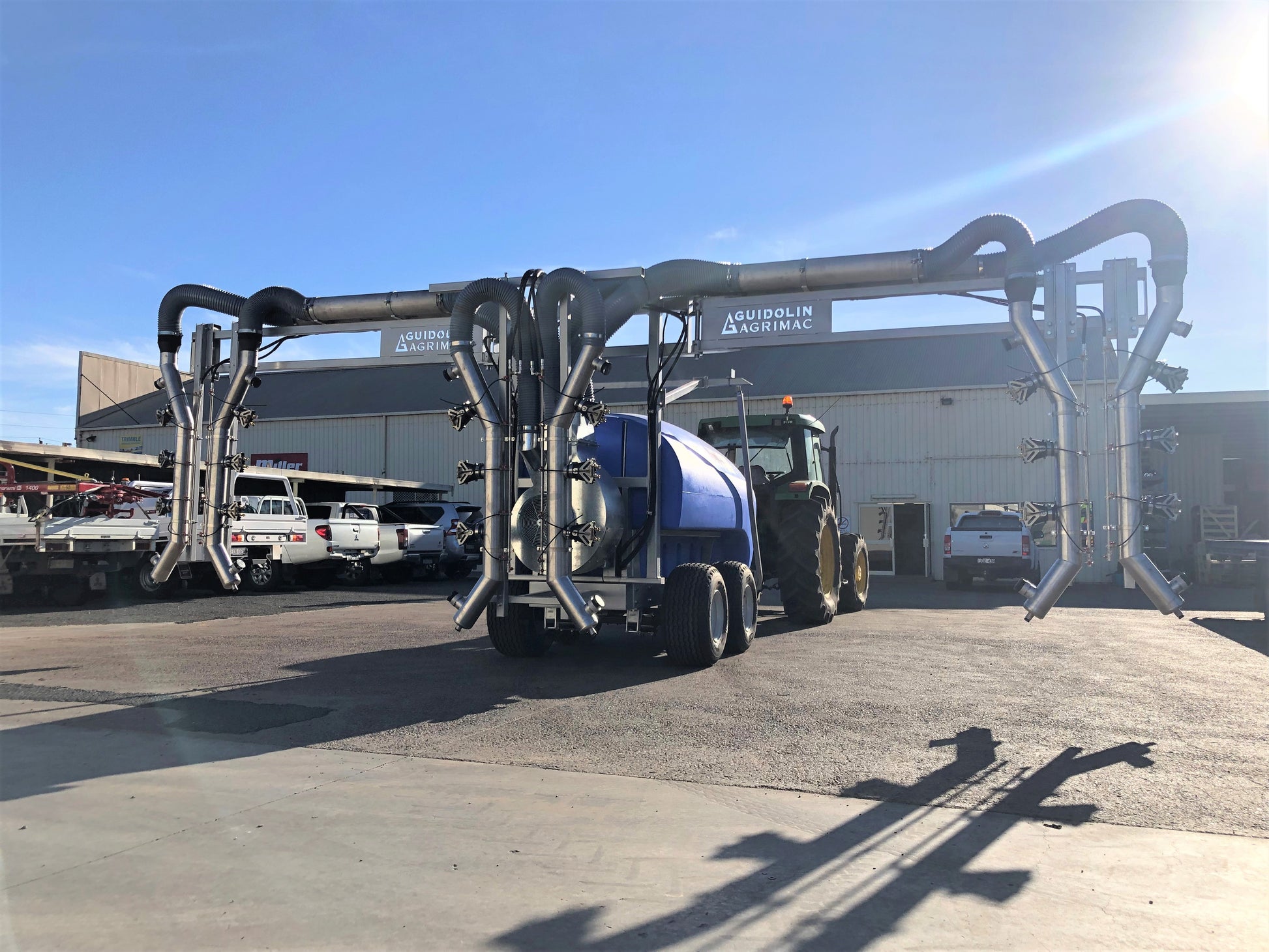

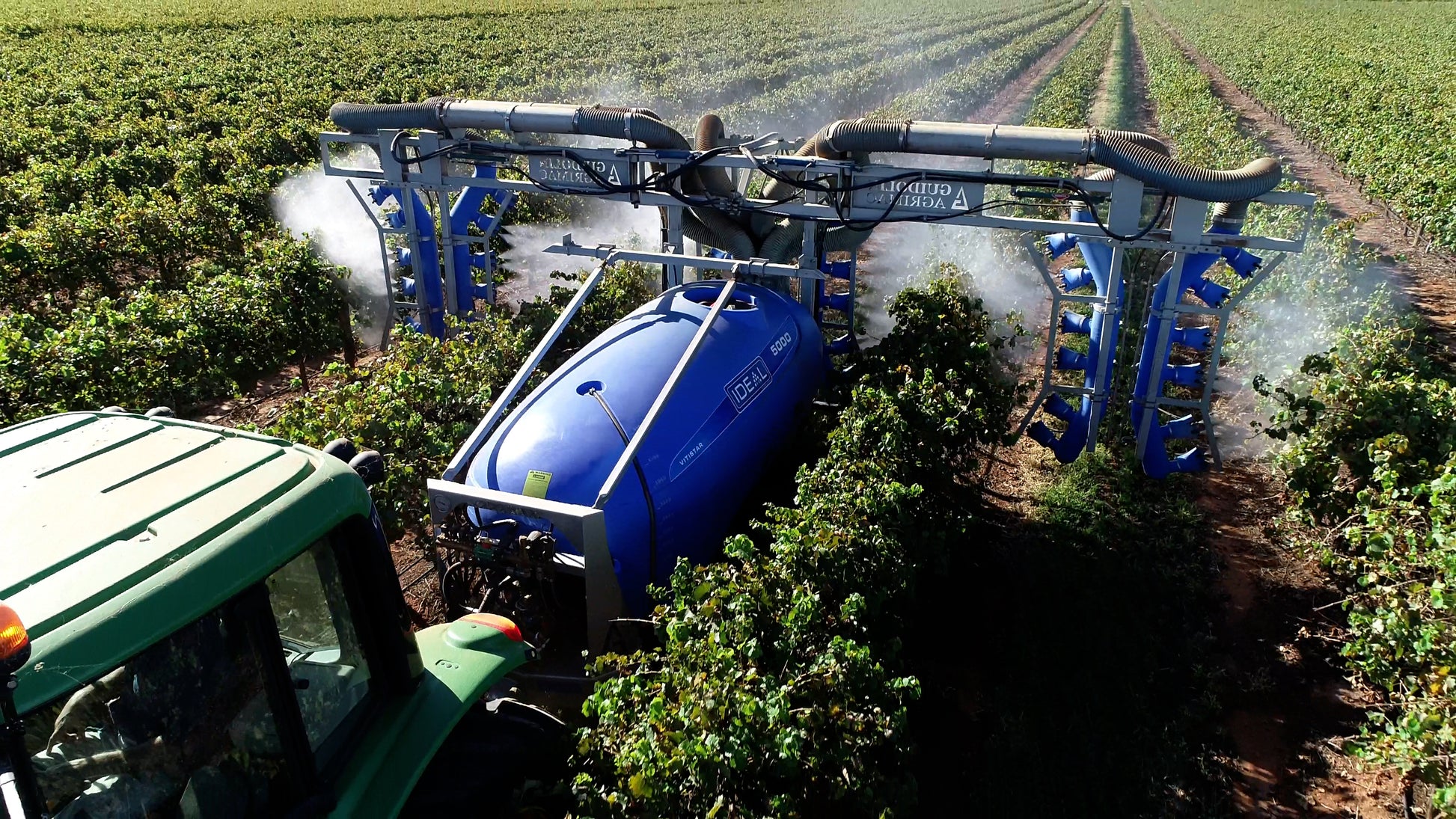

IDEAL Vitistar 3 Row Vineyard Sprayer

We have been manufacturing custom made sprayers for 60 years.

We pride ourselves in manufacturing with longevity in mind. The use of high quality Australian made steel together with the excellent workmanship, from our experienced workshop team, guarantee an Ideal product which will withstand our tough Australian conditions.

Our Ideal spraying equipment gives farmers the confidence in reducing costs, saving time and maximum productivity.

SPECIFICATIONS:

MAIN APPLICATION
Wine and table Grapes

TANK
Impact resistant polyethylene tanks with UV-stabilise finish. Calibrated sight gauge, flip-open filling lid with large basket strainer. Quick fill system
3000L - 5000L Main tank
Separate 7L fresh water tank

FAN CICLONE
Twin turbine Fan, 2 speed
Fan capacity = 19,032 m3/h
Air speed = 85 m/s
Minimum horsepower required = 90hp
Optional hydraulic fans available

IDEAL SUPRA
Twin turbine fan, 2 speed
Fan capacity = 14,800 m3/h
Air speed = 110 m/s
Minimum horsepower = 75hp

PUMP
High pressure brass head pump - IDS2600 (max. 50-bar) - Large capacity (260 LPM) six diaphragm pump featuring front external bronze manifolds and brass heads to minimise corrosion.
Optional 250 LPM and 300 LPM high pressure pump.

DRIVE
Heavy duty PTO comes with safety covers and quick release pins. Optional constant velocity (CV) shaft available.

CONTROLS
Standard Electric - high pressure brass solenoid valves or motor valves, 2 section in - cab control with electric pressure adjustment.
Optional bravo 180 automatic rate controller, 2 section (left/right) with optional
4-section control. ISO Bus module available.

AGITATION
3000L - 5000L - twin brass agitators
Optional hypro hydraulic pump

FILTRATION
Full filtration system - tank filling basket, fitted with twin suctions filters

NOZZLES
Standard Albuz ceramic nozzles

CHASSIS
Powder coated, full-length chassis with adjustable drawbar and 6-stud wheel hubs. Fixed axle standard; optional adjustable height and width axle. Jockey stands supplied on all models.
Two and three row booms available with hydraulic fold, lift, side shift on request.
Hot dipped Galvanised is available on request

WHEELS
3000L - 5000L - steel rims, 400/60 x 15.5” flotation tyres
