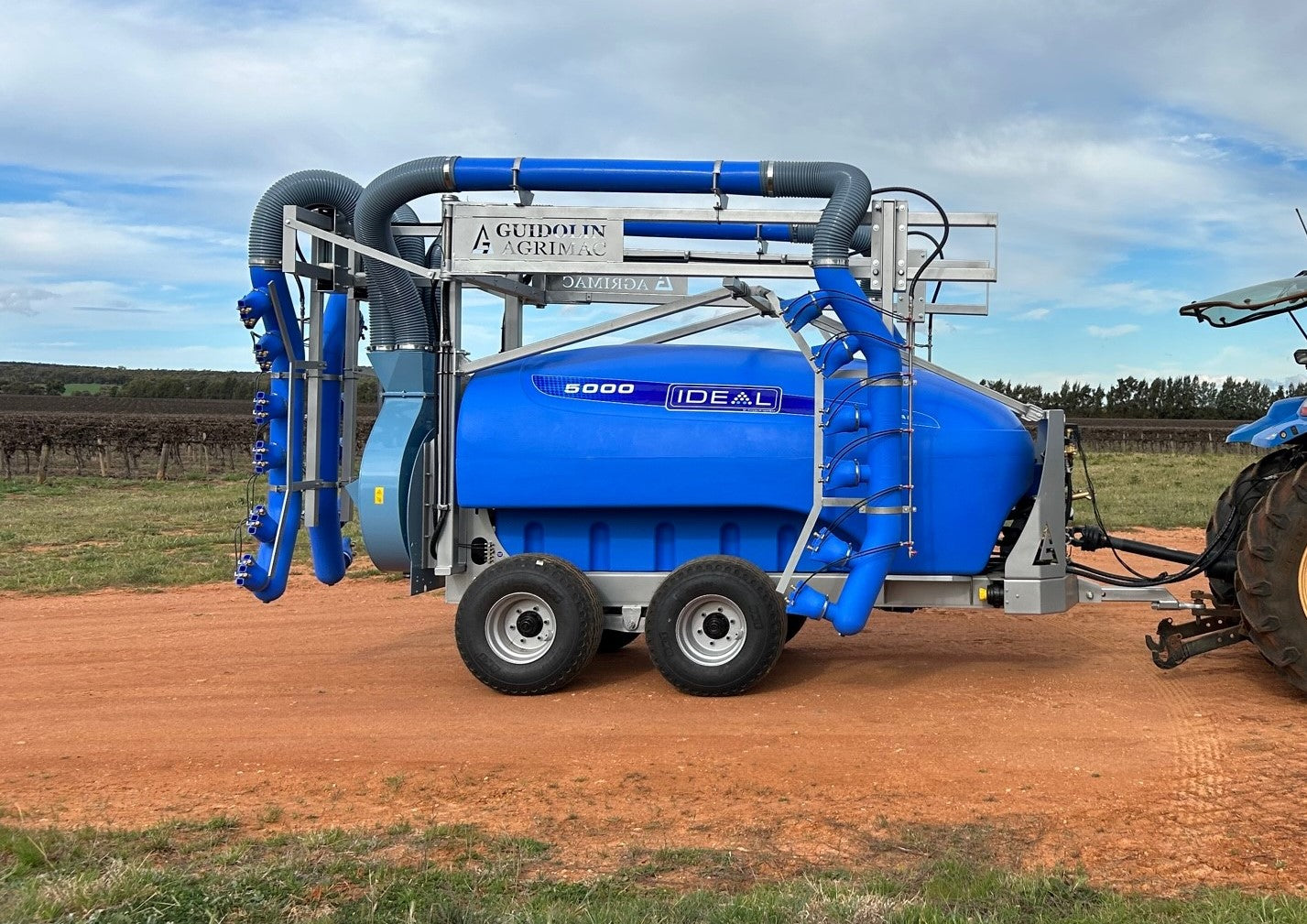

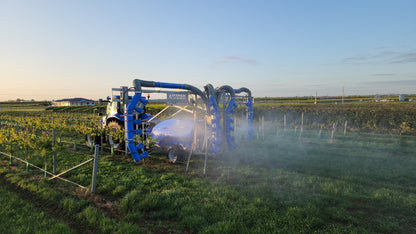

IDEAL Vitistar 2 Row Vineyard Sprayer

SPECIFICATIONS:

MAIN APPLICATION
Wine and table Grapes

TANK
Impact resistant polyethylene tanks with UV-stabilise finish. Calibrated sight gauge, flip-open filling lid with large basket strainer. Quick fill system
2000L - 5000L Main tank
Separate 7L fresh water tank

FAN
Twin turbine Fan, 2 speed
Fan capacity = 14,800 m3/h
Air speed = 110 m/s
Minimum horsepower required = 75hp

PUMP
High pressure brass head pump - ARBHS200 (max. 50-bar) - Large capacity (193 LPM) four diaphragm pump featuring front external bronze manifolds and brass heads to minimise corrosion.
Optional 260 LPM, 259 LPM or 300 LPM high pressure pump.

DRIVE
Heavy duty PTO driveshaft comes with safety covers and quick release pins. Optional constant velocity (CV) shaft available.

CONTROLS
Standard Electric - high pressure brass solenoid valves or motor valves, 2 section in - cab control with electric pressure adjustment.
Optional bravo 180 automatic rate controller, 2 section (left/right) with optional
4-section control. ISO Bus module available.

AGITATION
2000L - 5000L - twin brass agitators
Optional hypro hydraulic pump

FILTRATION
Full filtration system - tank filling basket, single suction filter. Twin suctions filters fitted to larger pump options.

NOZZLES
Standard Albuz ceramic nozzles

CHASSIS
Powder coated, full-length chassis with adjustable drawbar and 6-stud wheel hubs. Fixed axle standard; optional adjustable height and width axle. Jockey stands supplied on all models.
Two and three row booms available with hydraulic fold, lift, side shift on request.
Hot dipped Galvanised is available on request

WHEELS
2000L - steel rims, 11.5/80 x 15.3”
3000L - 5000L - steel rims, 400/60 x 15.5” flotation tyres
